Thread: [WL-500g Deluxe] European WL500g Deluxe first pics

  1. #16
    Join Date
    Nov 2003
    Location
    Eindhoven
    Posts
    2,407
    component details:

    WL500g Deluxe

    BROADCOM BCM5364PKPB
    MX 29LV320ABTC-90
    SAMSUNG K4S281632F-TC75
    VIA VT6212L
    DELTA LF8731 0432
    DELTA LF8505 0434W
    BCM4306KFB
    ATMEL434 93C46
    BCM2050KML

    the broadcom chip used is indeed 200Mhz

    My little Asus Collection: Too much to fit inhere, my 2 babies:WL500w 1.9.2.7-10(OLEG) VX2SE Yellow Lamborghini notebook



    WL500g Forum Asus Files OpenDir

    Asusforum.NL -- Asusforum.DE -- Asusforum.RU -- Asusforum.PL -- Asusforum.NET -- Asusforum.EU -- Asusforum.BE -- Asusforum.ES -- Asusforum.INFO

  2. #17
    thank you!
    I hope it gets here soon.

  3. #18
    Quote Originally Posted by Antiloop
    two words explain it all:

    'Which performance?'

    the darn thing is sooo slow, you can better buy a wl-hdd at this moment if you want fast hdd access

    do You mean slow compared to WL-500G or to USB 2.0 speed ?

    Thanks!

  4. #19
    Join Date
    Nov 2003
    Location
    Eindhoven
    Posts
    2,407
    Quote Originally Posted by Vins
    do You mean slow compared to WL-500G or to USB 2.0 speed ?

    Thanks!
    both

    speed from FTP from usb2.0 harddrive: 1,3Megabyte/sec

    My little Asus Collection: Too much to fit inhere, my 2 babies:WL500w 1.9.2.7-10(OLEG) VX2SE Yellow Lamborghini notebook



    WL500g Forum Asus Files OpenDir

    Asusforum.NL -- Asusforum.DE -- Asusforum.RU -- Asusforum.PL -- Asusforum.NET -- Asusforum.EU -- Asusforum.BE -- Asusforum.ES -- Asusforum.INFO

  5. #20
    Join Date
    Jul 2004
    Location
    Prague
    Posts
    11
    I've got my hands on one today. 200MHz and 32MB of RAM OK.
    I've measured the USB2.0 HDD throughput directly on the device and it reached about 5.5MB/s, which is much better than 0.9MB/s on the 'g' unit, but still falls short of 15MB/s with the same HDD box on a PC.
    Anyway, I wasn't able to squeeze more than 1.1MB/s out of it through the stupid-ftpd and only about 950KB/s over samba, both results wired.
    When wireless (.11g), samba was at about 650KB/s, but this time smbd took only about 40% of CPU (wired, it took >70% CPU).

    It seems to me that the bottleneck is mostly in the ethernet driver (I'll try it more later, with disabled bridge, if that makes a difference).

    I was unable to run epi_ttcp for some mysterious reason...

    I've also tried attaching USB2.0 DVB receiver, but I spotted some ehci BUG(ehci_mem:129), so I'm going to investigate it more.

    Is the original asus binary et.o driver the same as the netgear source one?

  6. #21
    Join Date
    Dec 2003
    Location
    Russian Federation
    Posts
    8,353
    Quote Originally Posted by Nenik
    It seems to me that the bottleneck is mostly in the ethernet driver (I'll try it more later, with disabled bridge, if that makes a difference).
    Yes, this makes difference. Disabling bridge (or binding to eth0 directly) improves speed for about 10%.

  7. #22

    WL 500 gx internals

    Just bought the deluxe version and upgraded to Oleg's wl500g-1.9.2.7-3c firmware. (Many kudo's to Oleg !!!)

    For the interested:

    CPU: BCM5365 rev 1 at 200 MHz
    Calibrating delay loop... 199.47 BogoMIPS
    Memory: 30288k/32768k available (1600k kernel code, 2480k reserved, 216k data, 68k init, 0k highmem)


    PCI devices found:
    Bus 0, device 0, function 0:
    Class 0501: PCI device 14e4:0800 (rev 1).
    IRQ 3.
    Non-prefetchable 32 bit memory at 0x18000000 [0x18000fff].
    Non-prefetchable 32 bit memory at 0x1fc00000 [0x1fffffff].
    Non-prefetchable 32 bit memory at 0x1c000000 [0x1dffffff].
    Non-prefetchable 32 bit memory at 0x1a000000 [0x1bffffff].
    Bus 0, device 1, function 0:
    Class 0200: PCI device 14e4:4713 (rev 1).
    IRQ 4.
    Non-prefetchable 32 bit memory at 0x18001000 [0x18001fff].
    Bus 0, device 2, function 0:
    Class 1000: PCI device 14e4:4718 (rev 1).
    IRQ 5.
    Non-prefetchable 32 bit memory at 0x18002000 [0x18002fff].
    Bus 0, device 3, function 0:
    Class 0c03: PCI device 14e4:4715 (rev 1).
    IRQ 6.
    Non-prefetchable 32 bit memory at 0x18003000 [0x18003fff].
    Bus 0, device 4, function 0:
    Class 0604: PCI device 14e4:0804 (rev 1).
    IRQ 2.
    Non-prefetchable 32 bit memory at 0x18004000 [0x18004fff].
    Non-prefetchable 32 bit memory at 0x8000000 [0xfffffff].
    Bus 0, device 5, function 0:
    Class 0b30: PCI device 14e4:0816 (rev 1).
    IRQ 2.
    Non-prefetchable 32 bit memory at 0x18005000 [0x18005fff].
    Bus 0, device 6, function 0:
    Class 0500: PCI device 14e4:080f (rev 1).
    IRQ 3.
    Non-prefetchable 32 bit memory at 0x18006000 [0x18006fff].
    Non-prefetchable 32 bit memory at 0x0 [0x7ffffff].
    Non-prefetchable 32 bit memory at 0x10000000 [0x17ffffff].
    Non-prefetchable 32 bit memory at 0x80000000 [0x9fffffff].
    Bus 1, device 0, function 0:
    Class 0600: PCI device 14e4:5365 (rev 0).
    IRQ 2.
    Non-prefetchable 32 bit memory at 0x40000000 [0x40001fff].
    Prefetchable 32 bit memory at 0x0 [0x7ffffff].
    Bus 1, device 2, function 0:
    Class 0c03: PCI device 1106:3038 (rev 97).
    IRQ 2.
    Master Capable. Latency=22.
    I/O at 0x100 [0x11f].
    Bus 1, device 2, function 1:
    Class 0c03: PCI device 1106:3038 (rev 97).
    IRQ 2.
    Master Capable. Latency=22.
    I/O at 0x120 [0x13f].
    Bus 1, device 2, function 2:
    Class 0c03: PCI device 1106:3104 (rev 99).
    IRQ 2.
    Master Capable. Latency=22.
    Non-prefetchable 32 bit memory at 0x40002000 [0x400020ff].
    Bus 1, device 3, function 0:
    Class 0280: PCI device 14e4:4320 (rev 3).
    IRQ 2.
    Non-prefetchable 32 bit memory at 0x40004000 [0x40005fff].

    And the picture:

    does this work?
    Attached Images Attached Images

  8. #23
    Join Date
    Feb 2005
    Location
    Germany - Frankfurt a.M.
    Posts
    299
    But, where to buy?
    WL-500gP => 1.9.2.7-7g (2007-04-06)
    Running: thttpd, php 5.1, vsftp, rrdtool

    http://onlinefussballmanager.de/userbar/0/53647.png

  9. #24

    New Version?

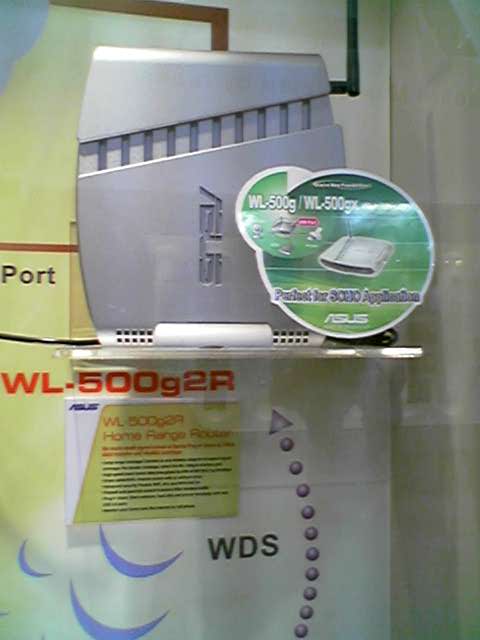

    While visiting CeBIT I've run into ASUS' booth and I've found this weird things (see picture):
    1. Why is the CD labelled g/gx?
    2. What is the WL-500g2R?
    Attached Images Attached Images

  10. #25
    Join Date
    Aug 2004
    Location
    Germany
    Posts
    377
    Hi

    I think the G/GX just means the devices are so similar that they share some advertising/dokumentation material, no new device.
    Btw, what has the gx what the g has not, other than more cpu power and 2.0 USB ?

    But the other device is interresting, indeet.

    Greets
    My Stuff: WL-500g, Mapower H31x 10GB HD, Philips Webcam Vesta PRO, TerraTec Webcam PRO, USB Hub

  11. #26

    Talking Onboard Jumpers

    Hi,

    Looking at that picture it looks like there are 2 extra USB ports available and 2 serial ports as well as a number of GPIO pins.

    This looks very interesting!

    Well looks Like I'm getting an Asus instead of the linksys.

    @linuxinside, would it be possible to post a picture of a close up of the areas with the jumpers/pin headers?

    Phil.

    P.s. Apologies if this is already known, just got here after reading the article at Linuxdevices.

  12. #27
    Join Date
    Nov 2003
    Location
    Eindhoven
    Posts
    2,407
    Quote Originally Posted by phil_trick
    Hi,

    Looking at that picture it looks like there are 2 extra USB ports available and 2 serial ports as well as a number of GPIO pins.

    This looks very interesting!

    Well looks Like I'm getting an Asus instead of the linksys.

    @linuxinside, would it be possible to post a picture of a close up of the areas with the jumpers/pin headers?

    Phil.

    P.s. Apologies if this is already known, just got here after reading the article at Linuxdevices.
    they are available, but have not been made available yet

    please have a look in this (temporary) directory at http://www.chupa.nl/wl500gx/wl500g%20deluxe/

    My little Asus Collection: Too much to fit inhere, my 2 babies:WL500w 1.9.2.7-10(OLEG) VX2SE Yellow Lamborghini notebook



    WL500g Forum Asus Files OpenDir

    Asusforum.NL -- Asusforum.DE -- Asusforum.RU -- Asusforum.PL -- Asusforum.NET -- Asusforum.EU -- Asusforum.BE -- Asusforum.ES -- Asusforum.INFO

  13. #28
    Howdy Antiloop.

    Looks like on J5 you have 2 serial ports coming out on that header.
    WARNING: they look like they at TTL levels so they can't be plugged in to a serail port on a PC directly.

    There might be a system console on the first serial port which might be useful for debugging.

    There is also a reset signal on that header which might be useful.
    The is a 3.3v supply and ground so a level converter PCB could be made for that jumper, and the power could be drawn from the main PCB.

    The second set of headers: J1 (I think, hey, I can't count either ) look to be standard USB port headers. The only thing is that they do not have a +5v supply for the usb connectors. For that we might be able to draw the voltage from the +5v supply on the built in USB ports.

    Now all I need is for some place in Ireland to start selling one of these

    Getting any product info off the Broadcom website for the processor is difficult as well.

    Phil

  14. #29

    Thumbs up GX vs. G

    The GX has (a) 2 USB 2.0 ports vs. 1 USB 1.1 port on the -G version, big improvement if you're planning on using USB-attached hard drives and (b) has the "afterburner" wireless enhancement so potentially you can get 100+ Mb/s throughput if your client adapters support it

  15. #30
    Join Date
    Apr 2004
    Location
    Netherlands
    Posts
    1,307
    Quote Originally Posted by rkhalloran
    The GX has (a) 2 USB 2.0 ports vs. 1 USB 1.1 port on the -G version, big improvement if you're planning on using USB-attached hard drives and (b) has the "afterburner" wireless enhancement so potentially you can get 100+ Mb/s throughput if your client adapters support it
    Yeah well, "potentially" is even a big word when we're talking about wireless performance....
