Thank you, Oleg! But There's no Extended mode. I see only Wireless -> Advanced and that's all! So where is the problem? Can you post me an image of it? Thank youQuote:
Originally Posted by Oleg
Printable View
Thank you, Oleg! But There's no Extended mode. I see only Wireless -> Advanced and that's all! So where is the problem? Can you post me an image of it? Thank youQuote:
Originally Posted by Oleg
That's it.Quote:
Originally Posted by JaraNovak
Aha, so there's some problem at me. Because I can see only this:
Does it depends on using wl-500b instead of wl-500g? What is wrong?
Most likely you've wl500bv2 unit, which is based on the ralink radio, which seems to be unsupported.
I'm wonder, why you've bought 802.11b only unit?
I don't know, wheter it is wl500b or wl500bv2. I bought it 19.2.2004. It seems you are right and it is wl500bv2. I have no luck:-(Quote:
Originally Posted by Oleg
Which firmware you've flashed then? wl500b or wl500bv2? :confused:Quote:
Originally Posted by JaraNovak
wl500bv2...Quote:
Originally Posted by Oleg
But now, I have next problem - Air LED doesn't light...
fine... I'm very impressed... :DQuote:
Originally Posted by JaraNovak
Please type
in the hidden admin page and press refresh. Post results here.Code:cat /proc/pci
Here is a result:
Quote:
PCI devices found:
Bus 0, device 0, function 0:
Class 0500: PCI device 14e4:0803 (rev 0).
IRQ 6.
Non-prefetchable 32 bit memory at 0x18000000 [0x18000fff].
Non-prefetchable 32 bit memory at 0x0 [0x7ffffff].
Non-prefetchable 32 bit memory at 0x10000000 [0x17ffffff].
Non-prefetchable 32 bit memory at 0x80000000 [0xffffffff].
Bus 0, device 1, function 0:
Class 0200: PCI device 14e4:4711 (rev 0).
IRQ 5.
Non-prefetchable 32 bit memory at 0x18001000 [0x18001fff].
Bus 0, device 2, function 0:
Class 0200: PCI device 14e4:4713 (rev 0).
IRQ 3.
Non-prefetchable 32 bit memory at 0x18002000 [0x18002fff].
Bus 0, device 3, function 0:
Class 0703: PCI device 14e4:4712 (rev 0).
IRQ 2.
Non-prefetchable 32 bit memory at 0x18003000 [0x18003fff].
Bus 0, device 4, function 0:
Class 0c03: PCI device 14e4:4715 (rev 0).
IRQ 2.
Non-prefetchable 32 bit memory at 0x18004000 [0x18004fff].
Bus 0, device 5, function 0:
Class 0604: PCI device 14e4:0804 (rev 0).
IRQ 6.
Non-prefetchable 32 bit memory at 0x18005000 [0x18005fff].
Non-prefetchable 32 bit memory at 0x8000000 [0xfffffff].
Bus 0, device 6, function 0:
Class 0b30: PCI device 14e4:0805 (rev 0).
IRQ 6.
Non-prefetchable 32 bit memory at 0x18006000 [0x18006fff].
Non-prefetchable 32 bit memory at 0xff200000 [0xff3fffff].
Bus 0, device 7, function 0:
Class 0501: PCI device 14e4:0811 (rev 0).
IRQ 2.
Non-prefetchable 32 bit memory at 0x18007000 [0x18007fff].
Non-prefetchable 32 bit memory at 0x1f000000 [0x1fffffff].
Bus 0, device 8, function 0:
Class 0200: PCI device 14e4:4713 (rev 0).
IRQ 4.
Non-prefetchable 32 bit memory at 0x18008000 [0x18008fff].
Bus 1, device 0, function 0:
Class 0600: PCI device 14e4:4710 (rev 1).
IRQ 6.
Non-prefetchable 32 bit memory at 0x40000000 [0x40001fff].
Prefetchable 32 bit memory at 0x0 [0x7ffffff].
Bus 1, device 2, function 0:
Class 0280: PCI device 14e4:4301 (rev 2).
IRQ 6.
Non-prefetchable 32 bit memory at 0x40002000 [0x40003fff].
You've wl500b unit with broadcom radio. Flash wl500b firmware using firmware restoration mode. v2 stays for hardware revision, not for "even cooler" firmware.Quote:
Originally Posted by JaraNovak
Dear Oleg,
thank you very much! Now everything works well, I'm going to test it.
Where can I see reasonable APs?
Ok, thank you very much Oleg. I was somewhat dissapointed not to find the mentionned folders so I did not keep on reading the rest.Quote:
Originally Posted by Oleg
The hard disk works fine now even if I do have some strange logs, it's mounted correctly. I'm not at home right now so no way to post the log. The USB stick, no way so far. I'm gonna reformat it and will keep you posted for info.
Funny story :D :D :D :D : I kept trying during more than two hours the other day with no sucess .... yesterday when I rebooted the external case I found the HDD very silent ... too silent: actually the HDD was still in my PC connected through the IDE cable while I was stupidely trying to mount an empty USB case :D :D :D :D
Cheers,
It's wl500b or wl500bv2?
PCI devices found:
Bus 0, device 0, function 0:
Class 0500: PCI device 14e4:0803 (rev 0).
IRQ 6.
Non-prefetchable 32 bit memory at 0x18000000 [0x18000fff].
Non-prefetchable 32 bit memory at 0x0 [0x7ffffff].
Non-prefetchable 32 bit memory at 0x10000000 [0x17ffffff].
Non-prefetchable 32 bit memory at 0x80000000 [0xffffffff].
Bus 0, device 1, function 0:
Class 0200: PCI device 14e4:4711 (rev 0).
IRQ 5.
Non-prefetchable 32 bit memory at 0x18001000 [0x18001fff].
Bus 0, device 2, function 0:
Class 0200: PCI device 14e4:4713 (rev 0).
IRQ 3.
Non-prefetchable 32 bit memory at 0x18002000 [0x18002fff].
Bus 0, device 3, function 0:
Class 0703: PCI device 14e4:4712 (rev 0).
IRQ 2.
Non-prefetchable 32 bit memory at 0x18003000 [0x18003fff].
Bus 0, device 4, function 0:
Class 0c03: PCI device 14e4:4715 (rev 0).
IRQ 2.
Non-prefetchable 32 bit memory at 0x18004000 [0x18004fff].
Bus 0, device 5, function 0:
Class 0604: PCI device 14e4:0804 (rev 0).
IRQ 6.
Non-prefetchable 32 bit memory at 0x18005000 [0x18005fff].
Non-prefetchable 32 bit memory at 0x8000000 [0xfffffff].
Bus 0, device 6, function 0:
Class 0b30: PCI device 14e4:0805 (rev 0).
IRQ 6.
Non-prefetchable 32 bit memory at 0x18006000 [0x18006fff].
Non-prefetchable 32 bit memory at 0xff200000 [0xff3fffff].
Bus 0, device 7, function 0:
Class 0501: PCI device 14e4:0811 (rev 0).
IRQ 2.
Non-prefetchable 32 bit memory at 0x18007000 [0x18007fff].
Non-prefetchable 32 bit memory at 0x1f000000 [0x1fffffff].
Bus 0, device 8, function 0:
Class 0200: PCI device 14e4:4713 (rev 0).
IRQ 4.
Non-prefetchable 32 bit memory at 0x18008000 [0x18008fff].
Bus 1, device 0, function 0:
Class 0600: PCI device 14e4:4710 (rev 1).
IRQ 6.
Non-prefetchable 32 bit memory at 0x40000000 [0x40001fff].
Prefetchable 32 bit memory at 0x0 [0x7ffffff].
Bus 1, device 2, function 0:
Class 0280: PCI device 1814:0101 (rev 0).
IRQ 6.
Non-prefetchable 32 bit memory at 0x40002000 [0x40003fff].
I need client mode with this hardware ....
Which firmware I have to use?
Thank You
wl500b v2 and it's probably stated somewhere on the unit as well as in the firmware upgrade page. As for client mode - it's probably not supported with RALink.Quote:
Originally Posted by pershing
wl500b v2 and it's probably stated somewhere on the unit as well as in the firmware upgrade page. As for client mode - it's probably not supported with RALink
I am loser .... :-(((
I'm use Celeron 300 with XP with firewall in function router... Cost electricity is to much...
I' hopest better news...
Thank You very match.
Excuse me may englisch....
just replace the card inside to wl120g and you will get wl500g.
Hello,
I'm using latest firmware (v. 1.9.2.7 CR3c [Oleg]) on Asus WL-500G and having problems with configuring timeout - when my router should disconnect from ISP. Tried both versions - with "Tx Only" checked and unchecked and no success :confused: "Idle Disconnect Time in seconds" is 1800. But seems my router does not disconnect from ISP for a long time when there is no internet usage at all. Here is a part of my log:
Feb 9 08:29:41 pppd[82]: LCP terminated by peer
Feb 9 08:29:42 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 9 08:29:42 dnsmasq[51]: reading /tmp/resolv.conf
Feb 9 08:29:42 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#xx
Feb 9 08:29:42 PPPoE: Disconnected
Feb 9 08:29:42 pppd[82]: Child process /tmp/ppp/ip-down (pid 386) terminated with signal 11
Feb 9 08:29:45 pppd[82]: Connection terminated.
Feb 9 08:29:45 pppd[82]: Connect time 42.6 minutes.
Feb 9 08:29:45 pppd[82]: Sent 64 bytes, received 3088 bytes.
Feb 9 08:30:15 pppoe-relay[80]: PADO packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 9 08:30:15 pppd[82]: PPP session is 2552
Feb 9 08:30:15 pppoe-relay[80]: PADS packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 9 08:30:15 pppd[82]: Using interface ppp0
Feb 9 08:30:15 pppd[82]: Connect: ppp0 <--> eth1
Feb 9 08:30:15 pppd[82]: PAP authentication succeeded
Feb 9 08:30:15 pppd[82]: peer from calling number xx:xx:xx:xx:xx:xx authorized
Feb 9 08:30:15 pppoe-relay[80]: Discovery packet on eth1 with unknown code 211
Feb 9 08:30:15 pppd[82]: local IP address xxx.xxx.xxx.xxx
Feb 9 08:30:15 pppd[82]: remote IP address xxx.xxx.xxx.xxx
Feb 9 08:30:15 pppd[82]: primary DNS address xxx.xxx.xxx.xxx
Feb 9 08:30:15 pppd[82]: secondary DNS address xxx.xxx.xxx.xxx
Feb 9 08:30:16 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 9 08:30:16 dnsmasq[51]: reading /tmp/resolv.conf
Feb 9 08:30:16 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#xx
Feb 9 08:30:16 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#xx
Feb 9 08:30:16 PPPoE: connect to ISP
Feb 9 17:38:35 pppd[82]: No response to 6 echo-requests
Feb 9 17:38:35 pppd[82]: Serial link appears to be disconnected.
Feb 9 17:38:35 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 9 17:38:35 dnsmasq[51]: reading /tmp/resolv.conf
Feb 9 17:38:35 dnsmasq[51]: using nameserverxxx.xxx.xxx.xxx#xx
Feb 9 17:38:35 PPPoE: Disconnected
Feb 9 17:38:41 pppd[82]: Connection terminated.
Feb 9 17:38:41 pppd[82]: Connect time 548.4 minutes.
Feb 9 17:38:41 pppd[82]: Sent 292 bytes, received 115218 bytes.
Feb 9 17:39:46 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:39:46 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:40:51 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:40:51 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:41:56 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:41:56 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:43:01 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:43:01 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:44:06 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:44:06 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:45:11 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:45:11 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:46:16 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:46:16 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:47:21 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:47:21 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:48:26 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:48:26 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:49:31 pppd[82]: Timeout waiting for PADO packets
Feb 9 17:49:31 pppd[82]: Unable to complete PPPoE Discovery
Feb 9 17:49:31 pppd[82]: Connect time 548.4 minutes.
Feb 9 17:49:31 pppd[82]: Sent 292 bytes, received 115218 bytes.
Feb 9 17:49:31 pppd[82]: Exit.
From here you can see 2 problems:
Feb 9 08:30:16 PPPoE: connect to ISP
Feb 9 17:38:35 pppd[82]: No response to 6 echo-requests
seems that router was connected to ISP from 08:30 to 17:38 - this is much more than 1800 secords :-) I can guarantee that nobody was using at this time as I am only one user and I wasn't at home at all :D
and the second problem is that after long period connected some problems somethimes comes (Timeout waiting for PADO packets) and after that pppd just exits and then I need to reboot my router before I can connect to my ISP and have internet again.
Maybe somebody could help me with suggestions what can I do to avoid these problems?
Thank you!
P.S. I'm connecting to ISP through PPPoE and it is configured (entered all login information) in router site to connect automaticly.
Have you specified DNS server addresses? This is required for idle to work and is stated on my page... It will not work with auto setting.Quote:
Originally Posted by cunami
Seems I did not read your site very carefuly :rolleyes: and my DNS addresses are autoconfigured. So I will try to add them manualy and then will see what happen. Thank you very much Oleg for your help!Quote:
Originally Posted by Oleg
Hello again,

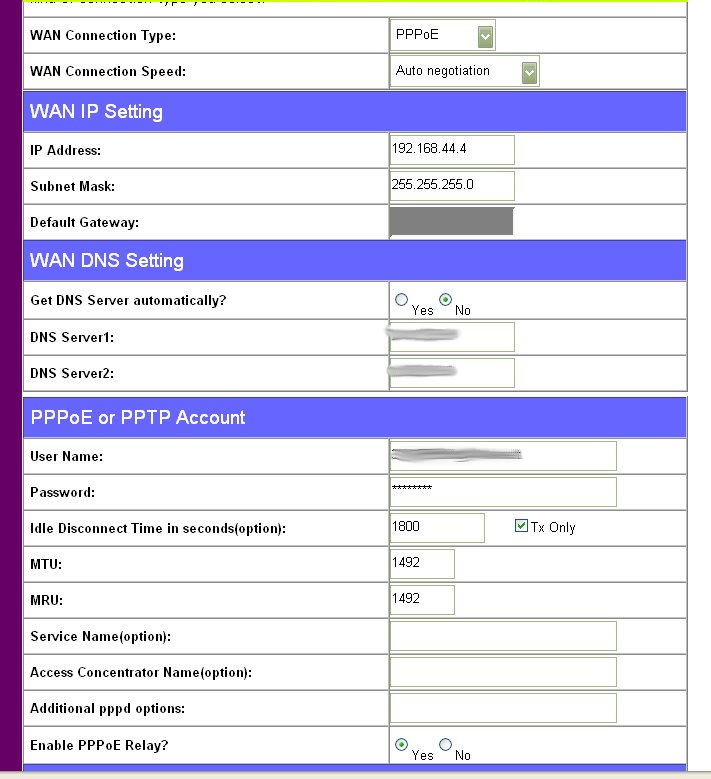

so I have tried to configure my router as you told me, and seems still the same problem persist. Here is how log looks now:
Feb 10 08:44:59 pppd[82]: Connection terminated.
Feb 10 08:44:59 pppd[82]: Connect time 5.1 minutes.
Feb 10 08:44:59 pppd[82]: Sent 40 bytes, received 114 bytes.
Feb 10 08:45:29 pppoe-relay[80]: PADO packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 08:45:30 pppd[82]: PPP session is 7456
Feb 10 08:45:30 pppoe-relay[80]: PADS packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 08:45:30 pppd[82]: Using interface ppp0
Feb 10 08:45:30 pppd[82]: Connect: ppp0 <--> eth1
Feb 10 08:45:30 pppd[82]: PAP authentication succeeded
Feb 10 08:45:30 pppd[82]: peer from calling number xx:xx:xx:xx:xx:xx authorized
Feb 10 08:45:30 pppoe-relay[80]: Discovery packet on eth1 with unknown code 211
Feb 10 08:45:30 pppd[82]: local IP address xxx.xxx.xxx.xxx
Feb 10 08:45:30 pppd[82]: remote IP address xxx.xxx.xxx.xxx
Feb 10 08:45:30 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 08:45:30 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 08:45:30 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 08:45:30 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 08:45:31 PPPoE: connect to ISP
Feb 10 09:10:31 pppd[82]: LCP terminated by peer
Feb 10 09:10:31 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 09:10:31 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 09:10:31 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:10:31 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:10:31 PPPoE: Disconnected
Feb 10 09:10:31 pppd[82]: Child process /tmp/ppp/ip-down (pid 354) terminated with signal 11
Feb 10 09:10:34 pppd[82]: Connection terminated.
Feb 10 09:10:34 pppd[82]: Connect time 25.1 minutes.
Feb 10 09:10:34 pppd[82]: Sent 40 bytes, received 4116 bytes.
Feb 10 09:11:04 pppoe-relay[80]: PADO packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 09:11:04 pppd[82]: PPP session is 3224
Feb 10 09:11:04 pppoe-relay[80]: PADS packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 09:11:04 pppd[82]: Using interface ppp0
Feb 10 09:11:04 pppd[82]: Connect: ppp0 <--> eth1
Feb 10 09:11:04 pppd[82]: PAP authentication succeeded
Feb 10 09:11:04 pppd[82]: peer from calling number xx:xx:xx:xx:xx:xx authorized
Feb 10 09:11:04 pppoe-relay[80]: Discovery packet on eth1 with unknown code 211
Feb 10 09:11:05 pppd[82]: local IP address xxx.xxx.xxx.xxx
Feb 10 09:11:05 pppd[82]: remote IP address xxx.xxx.xxx.xxx
Feb 10 09:11:05 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 09:11:05 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 09:11:05 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:11:05 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:11:05 PPPoE: connect to ISP
Feb 10 09:23:35 pppd[82]: LCP terminated by peer
Feb 10 09:23:35 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 09:23:35 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 09:23:35 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:23:35 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:23:35 PPPoE: Disconnected
Feb 10 09:23:35 pppd[82]: Child process /tmp/ppp/ip-down (pid 370) terminated with signal 11
Feb 10 09:23:38 pppd[82]: Connection terminated.
Feb 10 09:23:38 pppd[82]: Connect time 12.6 minutes.
Feb 10 09:23:38 pppd[82]: Sent 40 bytes, received 258 bytes.
Feb 10 09:24:08 pppoe-relay[80]: PADO packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 09:24:08 pppd[82]: PPP session is 5196
Feb 10 09:24:08 pppoe-relay[80]: PADS packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 09:24:08 pppd[82]: Using interface ppp0
Feb 10 09:24:08 pppd[82]: Connect: ppp0 <--> eth1
Feb 10 09:24:08 pppd[82]: PAP authentication succeeded
Feb 10 09:24:08 pppd[82]: peer from calling number xx:xx:xx:xx:xx:xx authorized
Feb 10 09:24:09 pppoe-relay[80]: Discovery packet on eth1 with unknown code 211
Feb 10 09:24:09 pppd[82]: local IP address xxx.xxx.xxx.xxx
Feb 10 09:24:09 pppd[82]: remote IP address xxx.xxx.xxx.xxx
Feb 10 09:24:09 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 09:24:09 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 09:24:09 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:24:09 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:24:09 PPPoE: connect to ISP
Feb 10 09:29:08 pppd[82]: LCP terminated by peer
Feb 10 09:29:09 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 09:29:09 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 09:29:09 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:29:09 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:29:09 PPPoE: Disconnected
Feb 10 09:29:09 pppd[82]: Child process /tmp/ppp/ip-down (pid 386) terminated with signal 11
Feb 10 09:29:12 pppd[82]: Connection terminated.
Feb 10 09:29:12 pppd[82]: Connect time 5.0 minutes.
Feb 10 09:29:12 pppd[82]: Sent 40 bytes, received 114 bytes.
Feb 10 09:29:42 pppoe-relay[80]: PADO packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 09:29:42 pppd[82]: PPP session is 5927
Feb 10 09:29:42 pppoe-relay[80]: PADS packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 09:29:42 pppd[82]: Using interface ppp0
Feb 10 09:29:42 pppd[82]: Connect: ppp0 <--> eth1
Feb 10 09:29:42 pppd[82]: PAP authentication succeeded
Feb 10 09:29:42 pppd[82]: peer from calling number xx:xx:xx:xx:xx:xx authorized
Feb 10 09:29:42 pppoe-relay[80]: Discovery packet on eth1 with unknown code 211
Feb 10 09:29:42 pppd[82]: local IP address xxx.xxx.xxx.xxx
Feb 10 09:29:42 pppd[82]: remote IP address xxx.xxx.xxx.xxx
Feb 10 09:29:43 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 09:29:43 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 09:29:43 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:29:43 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:29:43 PPPoE: connect to ISP
Feb 10 09:37:12 pppd[82]: LCP terminated by peer
Feb 10 09:37:13 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 09:37:13 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 09:37:13 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:37:13 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:37:13 PPPoE: Disconnected
Feb 10 09:37:13 pppd[82]: Child process /tmp/ppp/ip-down (pid 402) terminated with signal 11
Feb 10 09:37:15 pppd[82]: Connection terminated.
Feb 10 09:37:15 pppd[82]: Connect time 7.5 minutes.
Feb 10 09:37:15 pppd[82]: Sent 40 bytes, received 210 bytes.
Feb 10 09:37:46 pppoe-relay[80]: PADO packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 09:37:46 pppd[82]: PPP session is 6892
Feb 10 09:37:46 pppoe-relay[80]: PADS packet from xx:xx:xx:xx:xx:xx on interface eth1 does not have Relay-Session-Id tag
Feb 10 09:37:46 pppd[82]: Using interface ppp0
Feb 10 09:37:46 pppd[82]: Connect: ppp0 <--> eth1
Feb 10 09:37:46 pppd[82]: PAP authentication succeeded
Feb 10 09:37:46 pppd[82]: peer from calling number xx:xx:xx:xx:xx:xx authorized
Feb 10 09:37:46 pppoe-relay[80]: Discovery packet on eth1 with unknown code 211
Feb 10 09:37:46 pppd[82]: local IP address xxx.xxx.xxx.xxx
Feb 10 09:37:46 pppd[82]: remote IP address xxx.xxx.xxx.xxx
Feb 10 09:37:47 dnsmasq[51]: read /etc/hosts - 4 addresses
Feb 10 09:37:47 dnsmasq[51]: reading /tmp/resolv.conf
Feb 10 09:37:47 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:37:47 dnsmasq[51]: using nameserver xxx.xxx.xxx.xxx#53
Feb 10 09:37:47 PPPoE: connect to ISP
Now is Feb 10, 18:50 and no disconnect for a long time again. DNS names are configured manualy. I'm attaching screenshot of my configuration:
http://wl500g.info/attachment.php?at...ntid=317&stc=1
After I configured my router with these values, which you see in attachment, I have rebooted my router and this part of log, which you see above is already using this configuration. So what could be here wrong?
Thanks!
ok, post the output for
Also, 1800 seconds is about 30 minutes, and most likely traffic is still going. Try changing this to 300 seconds (5 minutes) and check if it helps.Code:cat /tmp/ppp/options.wan0
Well at all this time from 9:00 to 18:00 my computer was turned off and this is only one computer who is using internet through router. Wirelles activity is also almost impossible as I've added mac address filtering and log also is emty:Quote:
Originally Posted by Oleg
here is options.wan0 output:Code:Mode : AP Only
Channel : 11
Stations List
----------------------------------------
BTW if Tx Only is checked on then all activity from internet side is not counted yes? Timeout should occur after 30 minutes of no activity from LAN / Wireless side?Code:[admin@(none) /]$ cat /tmp/ppp/options.wan0
noauth refuse-eap
user 'xxxx'
password 'xxxx'
plugin rp-pppoe.so eth1
mru 1492
mtu 1492
tx_only
defaultroute
persist
ipcp-accept-remote ipcp-accept-local noipdefault
ktune
default-asyncmap nopcomp noaccomp
novj nobsdcomp nodeflate
lcp-echo-interval 10
lcp-echo-failure 6
unit 0
[admin@(none) /]$
@Oleg
I tried your Firmware 1.9.2.7 CR3b and CR3c but with both of them i can not connect to www.ebay.de with firefox, with the IE i get the mainpage of Ebay.de, but when i want to log into my account i get a DNS or server failure.
with the original Asus 1.9.2.7 i do not have this problem (bit connection Problems with WLAN and dying connection)
i also tried to insert the DNS Servers from my ISP manually, but it is not getting better. (with the original Asus i use the same DNS Servers...)
Do you have any suggestion?
Ok, found a bug in the code. Check your PM.Quote:
Originally Posted by cunami
Well, in fact this looks like a tcp mss problem. Could you please type thisQuote:
Originally Posted by Colonizer
and check if this helps. If it does not help - try decreasing mtu setting in the web iface - set it to something like 1200 and try again.Code:iptables -I FORWARD -p tcp --syn -j TCPMSS --clamp-mss-to-pmtu
Also, could you please type
and post results here?Code:iptables -L FORDWARD -vn
i insertet it on the hidden Adminpage and finished it with enter.Code:iptables -I FORWARD -p tcp --syn -j TCPMSS --clamp-mss-to-pmtu
nothing happens (neither a "done" or any result with my ebay problems
after using
i got a message: iptables: Table does not exist (do you need to insmod?)Code:iptables -L FORDWARD -vn
I rebooted the WL500g and after the reboot, i was able to get to my ebay loginpage (but not further)
i reduces the MTU to 1200 and repeatet everyting twice, but at the end i do not get my ebay login page anymore.
Sorry, small typo:Quote:
Originally Posted by Colonizer
Code:iptables -L FORWARD -vn
hm i do not get any message besides "None"
i also restored factory settings now, but it does not help.
i get the ebay mainpage (only once) and not even a login window...
Do you've firewall enabled? In which mode wl500g is running (router, home gateway, ap)?
Firewall is enabled, but i have not made any changes after the factory reset.
i use the Wl500g as HomeGateway.
Edit: Disabling the Firewall is not helping... :confused:
Edit2: with the IE i get the login page of Ebay again, but no successfull login.
I'm working for an Austrian ISP and we had several probs with mtu
-> but rather on sending data than on receiving.
-> IE works fine, mail receive also
-> sending small mails without attachments worked fine
-> sending mail with attachments kickedd the a***
changing mtu to 1492 worked fine for sending mails->
(buggy firmware on some routers!)
changing the mru...well if nessesary....but it should work fine with the defaults.
I rather think it's client-based (some FW or AV on your machine?)
proxy?
do you mean this one?ebay-login
yeap, you are right. either i even do not get to that page, or i am not able to log in there. (DNS Failure with the IE, or Document contains no Data with Firefox).Quote:
Originally Posted by majx
Login to a hotmail account fails as well, and i get strange smtp-messages when sending mails.
The Strange thing is, that i can make it work, when i use the original Asus Firmware (1.9.2.7) but there i have problems with my WLAN and sometimes the router looses te connection to my isp.
Now i am testing the 1.7.5.9 CR5, and at least Ebay seems to work fine.
Hm, please type the following:Quote:
Originally Posted by Colonizer
It's very strange, that FORWARD chain is empty for you...Code:iptables -L -vn
Did you add your IP's DNS to your clients config (don't obtain them via DHCP from router!)Quote:
Originally Posted by Colonizer
Maybe therefore he sees no output?Quote:
Originally Posted by Colonizer
The REFRESH-Button should bring a result, without ENTER before :cool:
You are right :eek:Quote:
Originally Posted by pifi
Ill try again tomorrow. Right now everything seems to be OK for me with 1.7.5.9-5 :D
have the same problem, please can you help me too? thanxQuote:
Originally Posted by Oleg
@ Oleg
the first command brings no result.
ebay problem still there...Code:Chain FORWARD (policy ACCEPT 83 packets, 4316 bytes)
pkts bytes target prot opt in out source destination
2 104 TCPMSS tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp flags:0x16/0x02 TCPMSS clamp to PMTU
36 1872 TCPMSS tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp flags:0x16/0x02 TCPMSS clamp to PMTU
36 1872 TCPMSS tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp flags:0x16/0x02 TCPMSS clamp to PMTU
1432 669K ACCEPT all -- * * 0.0.0.0/0 0.0.0.0/0 state RELATED,ESTABLISHED
0 0 DROP all -- * * 0.0.0.0/0 0.0.0.0/0 state INVALID
0 0 ACCEPT all -- br0 br0 0.0.0.0/0 0.0.0.0/0
47 2444 TCPMSS tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp flags:0x06/0x02 tcpmss match 1453:65535TCPMSS set 1452
0 0 ACCEPT tcp -- ppp0 * 0.0.0.0/0 0.0.0.0/0 tcp flags:0x16/0x02 limit: avg 1/sec burst 5
0 0 ACCEPT tcp -- ppp0 * 0.0.0.0/0 0.0.0.0/0 tcp flags:0x17/0x04 limit: avg 1/sec burst 5
0 0 ACCEPT icmp -- ppp0 * 0.0.0.0/0 0.0.0.0/0 limit: avg 1/sec burst 5 icmp type 8
0 0 ACCEPT udp -- * * 0.0.0.0/0 0.0.0.0/0
by the way, with the new Firmware i can not reply to posts here in this forum.
Check your PM.Quote:
Originally Posted by hellwach
